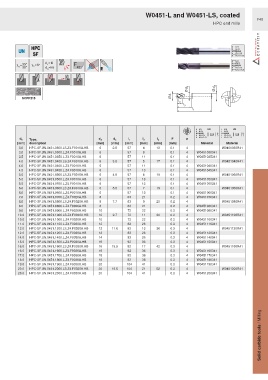

Page 1037 - Ceratizit Catalog

W0451-L and W0451-LS, coated
F40
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPP215
l 2
l 3
l 1

HB HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
3.0 HPC-SF.UN.0451.0300.LS.Z4.F0010A.HB 6 2.8 57 4 13 0.1 4 W0451030R41
3.0 HPC-SF.UN.0451.0300.L.Z4.F0010A.HB 6 57 8 0.1 4 W0451030341
3.5 HPC-SF.UN.0451.0350.L.Z4.F0010A.HB 6 57 11 0.1 4 W0451035341
4.0 HPC-SF.UN.0451.0400.LS.Z4.F0010A.HB 6 3.8 57 5 17 0.1 4 W0451040R41
4.0 HPC-SF.UN.0451.0400.L.Z4.F0010A.HB 6 57 11 0.1 4 W0451040341
4.5 HPC-SF.UN.0451.0450.L.Z4.F0010A.HB 6 57 13 0.1 4 W0451045341
5.0 HPC-SF.UN.0451.0500.LS.Z4.F0010A.HB 6 4.8 57 6 19 0.1 4 W0451050R41
5.0 HPC-SF.UN.0451.0500.L.Z4.F0010A.HB 6 57 13 0.1 4 W0451050341
5.5 HPC-SF.UN.0451.0550.L.Z4.F0010A.HB 6 57 13 0.1 4 W0451055341
6.0 HPC-SF.UN.0451.0600.LS.Z4.F0010A.HB 6 5.8 57 7 19 0.1 4 W0451060R41
6.0 HPC-SF.UN.0451.0600.L.Z4.F0010A.HB 6 57 13 0.1 4 W0451060341
7.0 HPC-SF.UN.0451.0700.L.Z4.F0020A.HB 8 63 21 0.2 4 W0451070341
8.0 HPC-SF.UN.0451.0800.LS.Z4.F0020A.HB 8 7.7 63 9 25 0.2 4 W0451080R41
8.0 HPC-SF.UN.0451.0800.L.Z4.F0020A.HB 8 63 21 0.2 4 W0451080341
9.0 HPC-SF.UN.0451.0900.L.Z4.F0020A.HB 10 72 22 0.2 4 W0451090341
10.0 HPC-SF.UN.0451.1000.LS.Z4.F0020A.HB 10 9.7 72 11 30 0.2 4 W0451100R41
10.0 HPC-SF.UN.0451.1000.L.Z4.F0020A.HB 10 72 22 0.2 4 W0451100341
11.0 HPC-SF.UN.0451.1100.L.Z4.F0030A.HB 12 83 26 0.3 4 W0451110341
12.0 HPC-SF.UN.0451.1200.LS.Z4.F0030A.HB 12 11.6 83 13 36 0.3 4 W0451120R41
12.0 HPC-SF.UN.0451.1200.L.Z4.F0030A.HB 12 83 26 0.3 4 W0451120341
14.0 HPC-SF.UN.0451.1400.L.Z4.F0030A.HB 14 83 26 0.3 4 W0451140341
15.0 HPC-SF.UN.0451.1500.L.Z4.F0030A.HB 16 92 36 0.3 4 W0451150341
16.0 HPC-SF.UN.0451.1600.LS.Z4.F0030A.HB 16 15.5 92 17 42 0.3 4 W0451160R41
16.0 HPC-SF.UN.0451.1600.L.Z4.F0030A.HB 16 92 36 0.3 4 W0451160341
17.0 HPC-SF.UN.0451.1700.L.Z4.F0030A.HB 18 92 36 0.3 4 W0451170341
18.0 HPC-SF.UN.0451.1800.L.Z4.F0030A.HB 18 92 36 0.3 4 W0451180341
19.0 HPC-SF.UN.0451.1900.L.Z4.F0030A.HB 20 104 41 0.3 4 W0451190341
20.0 HPC-SF.UN.0451.2000.LS.Z4.F0030A.HB 20 19.5 104 21 52 0.3 4 W0451200R41
20.0 HPC-SF.UN.0451.2000.L.Z4.F0030A.HB 20 104 41 0.3 4 W0451200341

Solid carbide tools / Milling
