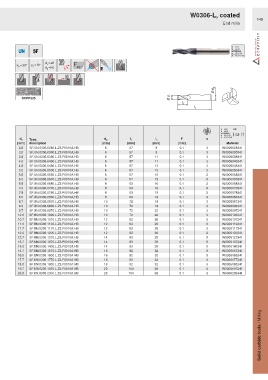

Page 1045 - Ceratizit Catalog

W0306-L, coated
F48
End mills

Ø d A
Ø d 1
SCPP225
l 2
l 1

HB
d 1 Type, d A l 1 l 2 F z
[mm] description [mm] [mm] [mm] [mm] Material
2.8 SF.UN.0306.0280.L.Z3.F0010A.HB 6 57 8 0.1 3 W0306028341
3.0 SF.UN.0306.0300.L.Z3.F0010A.HB 6 57 8 0.1 3 W0306030341
3.8 SF.UN.0306.0380.L.Z3.F0010A.HB 6 57 11 0.1 3 W0306038341
4.0 SF.UN.0306.0400.L.Z3.F0010A.HB 6 57 11 0.1 3 W0306040341
4.8 SF.UN.0306.0480.L.Z3.F0010A.HB 6 57 13 0.1 3 W0306048341
5.0 SF.UN.0306.0500.L.Z3.F0010A.HB 6 57 13 0.1 3 W0306050341
5.8 SF.UN.0306.0580.L.Z3.F0010A.HB 6 57 13 0.1 3 W0306058341
6.0 SF.UN.0306.0600.L.Z3.F0010A.HB 6 57 13 0.1 3 W0306060341
6.8 SF.UN.0306.0680.L.Z3.F0010A.HB 8 63 16 0.1 3 W0306068341
7.0 SF.UN.0306.0700.L.Z3.F0010A.HB 8 63 16 0.1 3 W0306070341
7.8 SF.UN.0306.0780.L.Z3.F0010A.HB 8 63 19 0.1 3 W0306078341
8.0 SF.UN.0306.0800.L.Z3.F0010A.HB 8 63 19 0.1 3 W0306080341
8.7 SF.UN.0306.0870.L.Z3.F0010A.HB 10 72 19 0.1 3 W0306087341
9.0 SF.UN.0306.0900.L.Z3.F0010A.HB 10 72 19 0.1 3 W0306090341
9.7 SF.UN.0306.0970.L.Z3.F0010A.HB 10 72 22 0.1 3 W0306097341
10.0 SF.UN.0306.1000.L.Z3.F0010A.HB 10 72 22 0.1 3 W0306100341
10.7 SF.UN.0306.1070.L.Z3.F0010A.HB 12 83 26 0.1 3 W0306107341
11.0 SF.UN.0306.1100.L.Z3.F0010A.HB 12 83 26 0.1 3 W0306110341
11.7 SF.UN.0306.1170.L.Z3.F0010A.HB 12 83 26 0.1 3 W0306117341
12.0 SF.UN.0306.1200.L.Z3.F0010A.HB 12 83 26 0.1 3 W0306120341
12.7 SF.UN.0306.1270.L.Z3.F0010A.HB 14 83 26 0.1 3 W0306127341
13.7 SF.UN.0306.1370.L.Z3.F0010A.HB 14 83 26 0.1 3 W0306137341
14.0 SF.UN.0306.1400.L.Z3.F0010A.HB 14 83 26 0.1 3 W0306140341
15.7 SF.UN.0306.1570.L.Z3.F0010A.HB 16 92 32 0.1 3 W0306157341
16.0 SF.UN.0306.1600.L.Z3.F0010A.HB 16 92 32 0.1 3 W0306160341
17.7 SF.UN.0306.1770.L.Z3.F0010A.HB 18 92 32 0.1 3 W0306177341
18.0 SF.UN.0306.1800.L.Z3.F0010A.HB 18 92 32 0.1 3 W0306180341
19.7 SF.UN.0306.1970.L.Z3.F0010A.HB 20 104 38 0.1 3 W0306197341
20.0 SF.UN.0306.2000.L.Z3.F0010A.HB 20 104 38 0.1 3 W0306200341

Solid carbide tools / Milling
