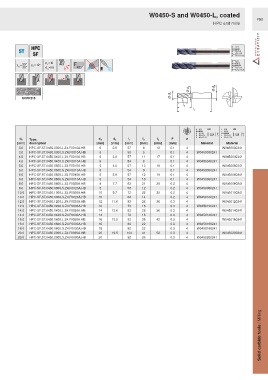

Page 1077 - Ceratizit Catalog

W0450-S and W0450-L, coated
F80
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPP215
l 2
l 3
l 1

HB HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
3.0 HPC-SF.ST.0450.0300.L.Z4.F0010A.HB 6 2.8 57 8 13 0.1 4 W0450030341
3.0 HPC-SF.ST.0450.0300.S.Z4.F0010A.HB 6 50 5 0.1 4 W0450030241
4.0 HPC-SF.ST.0450.0400.L.Z4.F0010A.HB 6 3.8 57 11 17 0.1 4 W0450040341
4.0 HPC-SF.ST.0450.0400.S.Z4.F0010A.HB 6 54 8 0.1 4 W0450040241
5.0 HPC-SF.ST.0450.0500.L.Z4.F0010A.HB 6 4.8 57 13 19 0.1 4 W0450050341
5.0 HPC-SF.ST.0450.0500.S.Z4.F0010A.HB 6 54 9 0.1 4 W0450050241
6.0 HPC-SF.ST.0450.0600.L.Z4.F0010A.HB 6 5.8 57 13 19 0.1 4 W0450060341
6.0 HPC-SF.ST.0450.0600.S.Z4.F0010A.HB 6 54 10 0.1 4 W0450060241
8.0 HPC-SF.ST.0450.0800.L.Z4.F0020A.HB 8 7.7 63 21 25 0.2 4 W0450080341
8.0 HPC-SF.ST.0450.0800.S.Z4.F0020A.HB 8 58 12 0.2 4 W0450080241
10.0 HPC-SF.ST.0450.1000.L.Z4.F0020A.HB 10 9.7 72 22 30 0.2 4 W0450100341
10.0 HPC-SF.ST.0450.1000.S.Z4.F0020A.HB 10 66 14 0.2 4 W0450100241
12.0 HPC-SF.ST.0450.1200.L.Z4.F0030A.HB 12 11.6 83 26 36 0.3 4 W0450120341
12.0 HPC-SF.ST.0450.1200.S.Z4.F0030A.HB 12 73 16 0.3 4 W0450120241
14.0 HPC-SF.ST.0450.1400.L.Z4.F0030A.HB 14 13.6 83 26 36 0.3 4 W0450140341
14.0 HPC-SF.ST.0450.1400.S.Z4.F0030A.HB 14 73 16 0.3 4 W0450140241
16.0 HPC-SF.ST.0450.1600.L.Z4.F0030A.HB 16 15.5 92 36 42 0.3 4 W0450160341
16.0 HPC-SF.ST.0450.1600.S.Z4.F0030A.HB 16 82 22 0.3 4 W0450160241
18.0 HPC-SF.ST.0450.1800.S.Z4.F0030A.HB 18 82 22 0.3 4 W0450180241
20.0 HPC-SF.ST.0450.2000.L.Z4.F0030A.HB 20 19.5 104 41 52 0.3 4 W0450200341
20.0 HPC-SF.ST.0450.2000.S.Z4.F0030A.HB 20 92 26 0.3 4 W0450200241

Solid carbide tools / Milling
