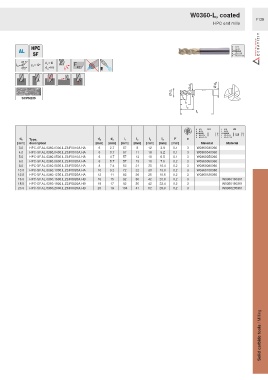

Page 1135 - Ceratizit Catalog

W0360-L, coated
F138
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPN235 l 4
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 l 4 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] Material Material
3.0 HPC-SF.AL.0360.0300.L.Z3.F0010A.HA 6 2.7 57 8 12 3.9 0.1 3 W0360030360
4.0 HPC-SF.AL.0360.0400.L.Z3.F0010A.HA 6 3.7 57 11 18 5.2 0.1 3 W0360040360
5.0 HPC-SF.AL.0360.0500.L.Z3.F0010A.HA 6 4.7 57 13 18 6.5 0.1 3 W0360050360
6.0 HPC-SF.AL.0360.0600.L.Z3.F0020A.HA 6 5.7 57 13 18 7.8 0.2 3 W0360060360
8.0 HPC-SF.AL.0360.0800.L.Z3.F0020A.HA 8 7.4 63 21 25 10.4 0.2 3 W0360080360
10.0 HPC-SF.AL.0360.1000.L.Z3.F0020A.HA 10 9.2 72 22 30 13.0 0.2 3 W0360100360
12.0 HPC-SF.AL.0360.1200.L.Z3.F0020A.HA 12 11 83 26 36 15.6 0.2 3 W0360120360
16.0 HPC-SF.AL.0360.1600.L.Z3.F0020A.HB 16 15 92 36 42 20.8 0.2 3 W0360160361
18.0 HPC-SF.AL.0360.1800.L.Z3.F0020A.HB 18 17 92 36 42 23.4 0.2 3 W0360180361
20.0 HPC-SF.AL.0360.2000.L.Z3.F0020A.HB 20 19 104 41 52 26.0 0.2 3 W0360200361

Solid carbide tools / Milling
