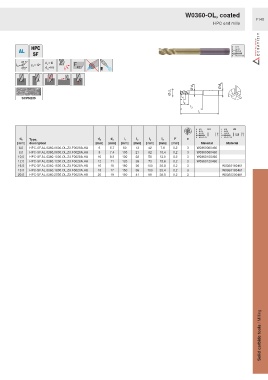

Page 1137 - Ceratizit Catalog

W0360-OL, coated
F140
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPN235 l 4
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 l 4 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] Material Material
6.0 HPC-SF.AL.0360.0600.OL.Z3.F0020A.HA 6 5.7 80 13 42 7.8 0.2 3 W0360060460
8.0 HPC-SF.AL.0360.0800.OL.Z3.F0020A.HA 8 7.4 100 21 62 10.4 0.2 3 W0360080460
10.0 HPC-SF.AL.0360.1000.OL.Z3.F0020A.HA 10 9.2 100 22 58 13.0 0.2 3 W0360100460
12.0 HPC-SF.AL.0360.1200.OL.Z3.F0020A.HA 12 11 120 26 73 15.6 0.2 3 W0360120460
16.0 HPC-SF.AL.0360.1600.OL.Z3.F0020A.HB 16 15 150 36 100 20.8 0.2 3 W0360160461
18.0 HPC-SF.AL.0360.1800.OL.Z3.F0020A.HB 18 17 150 36 100 23.4 0.2 3 W0360180461
20.0 HPC-SF.AL.0360.2000.OL.Z3.F0020A.HB 20 19 150 41 98 26.0 0.2 3 W0360200461

Solid carbide tools / Milling
