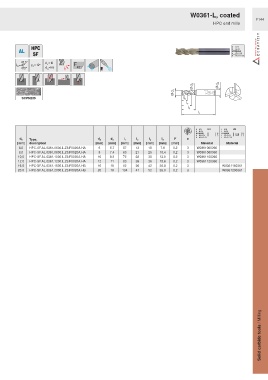

Page 1141 - Ceratizit Catalog

W0361-L, coated
F144
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPN235 l 4
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 l 4 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm] Material Material
6.0 HPC-SF.AL.0361.0600.L.Z3.F0020A.HA 6 5.7 57 13 18 7.8 0.2 3 W0361060360
8.0 HPC-SF.AL.0361.0800.L.Z3.F0020A.HA 8 7.4 63 21 25 10.4 0.2 3 W0361080360
10.0 HPC-SF.AL.0361.1000.L.Z3.F0020A.HA 10 9.2 72 22 30 13.0 0.2 3 W0361100360
12.0 HPC-SF.AL.0361.1200.L.Z3.F0020A.HA 12 11 83 26 36 15.6 0.2 3 W0361120360
16.0 HPC-SF.AL.0361.1600.L.Z3.F0020A.HB 16 15 92 36 42 20.8 0.2 3 W0361160361
20.0 HPC-SF.AL.0361.2000.L.Z3.F0020A.HB 20 19 104 41 52 26.0 0.2 3 W0361200361

Solid carbide tools / Milling
