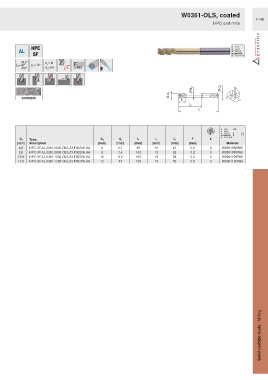

Page 1143 - Ceratizit Catalog

W0361-OLS, coated
F146
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPN235
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
6.0 HPC-SF.AL.0361.0600.OLS.Z3.F0020A.HA 6 5.7 80 10 42 0.2 3 W0361060R60
8.0 HPC-SF.AL.0361.0800.OLS.Z3.F0020A.HA 8 7.4 100 13 62 0.2 3 W0361080R60
10.0 HPC-SF.AL.0361.1000.OLS.Z3.F0020A.HA 10 9.2 100 16 58 0.2 3 W0361100R60
12.0 HPC-SF.AL.0361.1200.OLS.Z3.F0020A.HA 12 11 120 19 73 0.2 3 W0361120R60

Solid carbide tools / Milling
