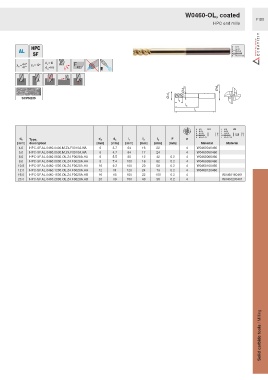

Page 1147 - Ceratizit Catalog

W0460-OL, coated
F150
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPN235
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
4.0 HPC-SF.AL.0460.0400.M.Z4.F0010A.HA 6 3.7 64 16 22 4 W0460040460
5.0 HPC-SF.AL.0460.0500.M.Z4.F0010A.HA 6 4.7 64 17 24 4 W0460050460
6.0 HPC-SF.AL.0460.0600.OL.Z4.F0020A.HA 6 5.5 80 12 42 0.2 4 W0460060460
8.0 HPC-SF.AL.0460.0800.OL.Z4.F0020A.HA 8 7.4 100 16 62 0.2 4 W0460080460
10.0 HPC-SF.AL.0460.1000.OL.Z4.F0020A.HA 10 9.2 100 20 58 0.2 4 W0460100460
12.0 HPC-SF.AL.0460.1200.OL.Z4.F0020A.HA 12 11 120 24 73 0.2 4 W0460120460
16.0 HPC-SF.AL.0460.1600.OL.Z4.F0020A.HB 16 15 150 32 100 0.2 4 W0460160461
20.0 HPC-SF.AL.0460.2000.OL.Z4.F0020A.HB 20 19 150 40 98 0.2 4 W0460200461

Solid carbide tools / Milling
