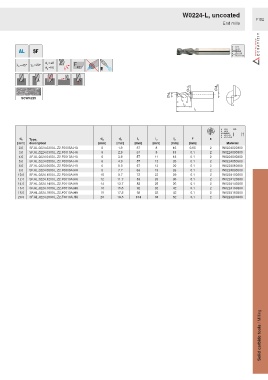

Page 1149 - Ceratizit Catalog

W0224-L, uncoated
F152
End mills

Ø d 3 Ø d A
Ø d 1
SCWN225
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
2.0 SF.AL.0224.0200.L.Z2.F0005A.HA 6 1.9 57 8 16 0.05 2 W0224020300
3.0 SF.AL.0224.0300.L.Z2.F0010A.HA 6 2.9 57 8 18 0.1 2 W0224030300
4.0 SF.AL.0224.0400.L.Z2.F0010A.HA 6 3.9 57 11 18 0.1 2 W0224040300
5.0 SF.AL.0224.0500.L.Z2.F0010A.HA 6 4.9 57 13 20 0.1 2 W0224050300
6.0 SF.AL.0224.0600.L.Z2.F0010A.HA 6 5.9 57 13 20 0.1 2 W0224060300
8.0 SF.AL.0224.0800.L.Z2.F0010A.HA 8 7.7 63 19 26 0.1 2 W0224080300
10.0 SF.AL.0224.1000.L.Z2.F0010A.HA 10 9.7 72 22 29 0.1 2 W0224100300
12.0 SF.AL.0224.1200.L.Z2.F0010A.HA 12 11.7 83 26 36 0.1 2 W0224120300
14.0 SF.AL.0224.1400.L.Z2.F0010A.HA 14 13.7 83 26 36 0.1 2 W0224140300
16.0 SF.AL.0224.1600.L.Z2.F0010A.HA 16 15.5 92 32 42 0.1 2 W0224160300
18.0 SF.AL.0224.1800.L.Z2.F0010A.HA 18 17.5 92 32 42 0.1 2 W0224180300
20.0 SF.AL.0224.2000.L.Z2.F0010A.HA 20 19.5 104 38 52 0.1 2 W0224200300

Solid carbide tools / Milling
