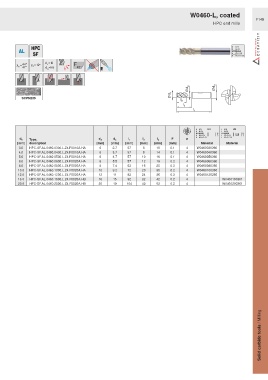

Page 1145 - Ceratizit Catalog

W0460-L, coated
F148
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPN235
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
3.0 HPC-SF.AL.0460.0300.L.Z4.F0010A.HA 6 2.7 57 6 10 0.1 4 W0460030360
4.0 HPC-SF.AL.0460.0400.L.Z4.F0010A.HA 6 3.7 57 8 14 0.1 4 W0460040360
5.0 HPC-SF.AL.0460.0500.L.Z4.F0010A.HA 6 4.7 57 10 16 0.1 4 W0460050360
6.0 HPC-SF.AL.0460.0600.L.Z4.F0020A.HA 6 5.5 57 12 19 0.2 4 W0460060360
8.0 HPC-SF.AL.0460.0800.L.Z4.F0020A.HA 8 7.4 63 16 25 0.2 4 W0460080360
10.0 HPC-SF.AL.0460.1000.L.Z4.F0020A.HA 10 9.2 72 20 30 0.2 4 W0460100360
12.0 HPC-SF.AL.0460.1200.L.Z4.F0020A.HA 12 11 83 24 36 0.2 4 W0460120360
16.0 HPC-SF.AL.0460.1600.L.Z4.F0020A.HB 16 15 92 32 42 0.2 4 W0460160361
20.0 HPC-SF.AL.0460.2000.L.Z4.F0020A.HB 20 19 104 40 52 0.2 4 W0460200361

Solid carbide tools / Milling
