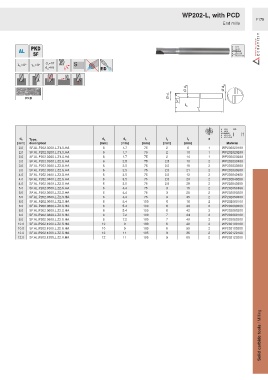

WP202-L, with PCD
F178
End mills

h7

Ø d 3 Ø d A
Ø d 1
PKD
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 z
[mm] description [mm] [mm] [mm] [mm] [mm] Material
2.0 SF.AL.P202.0200.L.Z1.S.HA 6 1.7 75 2 6 1 WP202020100
2.0 SF.AL.P202.0200.L.Z1.S.HA 6 1.7 75 2 10 1 WP202020200
2.0 SF.AL.P202.0200.L.Z1.S.HA 6 1.7 75 2 14 1 WP202020300
3.0 SF.AL.P202.0300.L.Z2.S.HA 6 2.5 75 2.5 10 2 WP202030100
3.0 SF.AL.P202.0300.L.Z2.S.HA 6 2.5 75 2.5 15 2 WP202030200
3.0 SF.AL.P202.0300.L.Z2.S.HA 6 2.5 75 2.5 21 2 WP202030300
4.0 SF.AL.P202.0400.L.Z2.S.HA 6 3.5 75 2.5 12 2 WP202040100
4.0 SF.AL.P202.0400.L.Z2.S.HA 6 3.5 75 2.5 20 2 WP202040200
4.0 SF.AL.P202.0400.L.Z2.S.HA 6 3.5 75 2.5 28 2 WP202040300
5.0 SF.AL.P202.0500.L.Z2.S.HA 6 4.4 75 3 15 2 WP202050100
5.0 SF.AL.P202.0500.L.Z2.S.HA 6 4.4 75 3 25 2 WP202050200
5.0 SF.AL.P202.0500.L.Z2.S.HA 6 4.4 75 3 35 2 WP202050300
6.0 SF.AL.P202.0600.L.Z2.S.HA 6 5.4 100 6 18 2 WP202060100
6.0 SF.AL.P202.0600.L.Z2.S.HA 6 5.4 100 6 30 2 WP202060200
6.0 SF.AL.P202.0600.L.Z2.S.HA 6 5.4 100 6 42 2 WP202060300
8.0 SF.AL.P202.0800.L.Z2.S.HA 8 7.2 100 7 24 2 WP202080100
8.0 SF.AL.P202.0800.L.Z2.S.HA 8 7.2 100 7 40 2 WP202080200
10.0 SF.AL.P202.1000.L.Z2.S.HA 10 9 100 8 30 2 WP202100100
10.0 SF.AL.P202.1000.L.Z2.S.HA 10 9 100 8 50 2 WP202100200
12.0 SF.AL.P202.1200.L.Z2.S.HA 12 11 105 9 36 2 WP202120100
12.0 SF.AL.P202.1200.L.Z2.S.HA 12 11 105 9 60 2 WP202120200

Solid carbide tools / Milling
