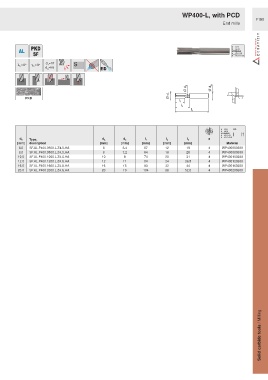

Page 1177 - Ceratizit Catalog

WP400-L, with PCD
F180
End mills

h7

Ø d 3 Ø d A
Ø d 1
PKD
l 2
l 3
l 1

HA
d 1 Type, d A d 3 l 1 l 2 l 3 z
[mm] description [mm] [mm] [mm] [mm] [mm] Material
6.0 SF.AL.P400.0600.L.Z4.S.HA 6 5.4 57 12 19 4 WP400060300
8.0 SF.AL.P400.0800.L.Z4.S.HA 8 7.2 64 16 26 4 WP400080300
10.0 SF.AL.P400.1000.L.Z4.S.HA 10 9 74 20 31 4 WP400100300
12.0 SF.AL.P400.1200.L.Z4.S.HA 12 11 84 24 36.5 4 WP400120300
16.0 SF.AL.P400.1600.L.Z4.S.HA 16 15 93 32 44 4 WP400160300
20.0 SF.AL.P400.2000.L.Z4.S.HA 20 19 104 38 52.5 4 WP400200300

Solid carbide tools / Milling
