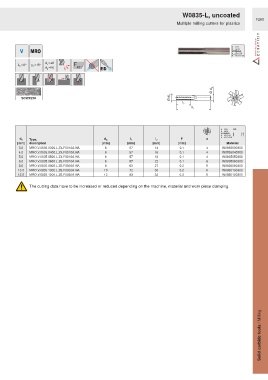

Page 1257 - Ceratizit Catalog

W0835-L, uncoated
F260
Multiple milling cutters for plastics

Ø d A

SCWX210 Ø d 1
l 2
l 1

HA
d 1 Type, d A l 1 l 2 F z
[mm] description [mm] [mm] [mm] [mm] Material
3.0 MRO.V.0835.0300.L.Z4.F0010A.HA 6 57 14 0.1 4 W0835030300
4.0 MRO.V.0835.0400.L.Z4.F0010A.HA 6 57 16 0.1 4 W0835040300
5.0 MRO.V.0835.0500.L.Z4.F0010A.HA 6 57 18 0.1 4 W0835050300
6.0 MRO.V.0835.0600.L.Z6.F0010A.HA 6 57 22 0.1 6 W0835060300
8.0 MRO.V.0835.0800.L.Z6.F0020A.HA 8 63 27 0.2 6 W0835080300
10.0 MRO.V.0835.1000.L.Z6.F0020A.HA 10 72 30 0.2 6 W0835100300
12.0 MRO.V.0835.1200.L.Z6.F0030A.HA 12 83 32 0.3 6 W0835120300

The cutting data have to be increased or reduced depending on the machine, material and work piece clamping.

Solid carbide tools / Milling
