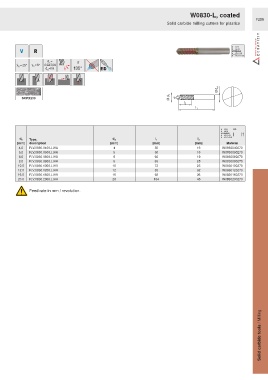

Page 1253 - Ceratizit Catalog

W0830-L, coated
F256
Solid carbide milling cutters for plastics

σ
135°

Ø d A
Ø d 1 σ
SCPX230
l 2
l 1

HA
d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
4.0 R.V.0830.0400.L.HA 4 50 16 W0830040270
5.0 R.V.0830.0500.L.HA 5 50 16 W0830050270
6.0 R.V.0830.0600.L.HA 6 60 19 W0830060270
8.0 R.V.0830.0800.L.HA 8 63 25 W0830080270
10.0 R.V.0830.1000.L.HA 10 72 25 W0830100270
12.0 R.V.0830.1200.L.HA 12 83 32 W0830120270
16.0 R.V.0830.1600.L.HA 16 92 36 W0830160270
20.0 R.V.0830.2000.L.HA 20 104 45 W0830200270

Feed rate in mm / revolution.

Solid carbide tools / Milling
