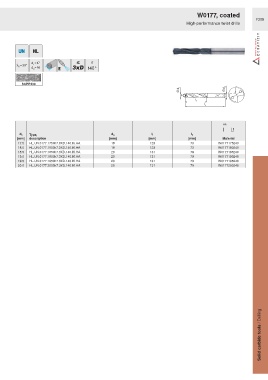

Page 1305 - Ceratizit Catalog

W0177, coated
F308
High-performance twist drills

σ
140°

SCPP430
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
17.5 HL.UN.0177.1750h7.3XD.140.IK.HA 18 123 73 W0177175240
18.0 HL.UN.0177.1800h7.3XD.140.IK.HA 18 123 73 W0177180240
18.5 HL.UN.0177.1850h7.3XD.140.IK.HA 20 131 79 W0177185240
19.0 HL.UN.0177.1900h7.3XD.140.IK.HA 20 131 79 W0177190240
19.5 HL.UN.0177.1950h7.3XD.140.IK.HA 20 131 79 W0177195240
20.0 HL.UN.0177.2000h7.3XD.140.IK.HA 20 131 79 W0177200240

Solid carbide tools / Drilling
