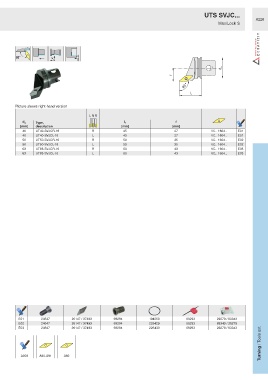

P. 247
UTS SVJC...
A226
MaxiLock S
93°
d A
f
93°
l 1
Picture shows right-hand version
L N R
d A Type, l 1 f
[mm] description [mm] [mm]
40 UT40-SVJCR-16 R 45 27 VC.. 1604.. E01
40 UT40-SVJCL-16 L 45 27 VC.. 1604.. E01
50 UT50-SVJCR-16 R 50 35 VC.. 1604.. E02
50 UT50-SVJCL-16 L 50 35 VC.. 1604.. E02
63 UT63-SVJCR-16 R 60 43 VC.. 1604.. E03
63 UT63-SVJCL-16 L 60 43 VC.. 1604.. E03
E01 24647 26147 / 37493 69294 194263 69293 29279 / 83343
E02 24647 26147 / 37493 69294 225429 69293 83343 / 29279
Turning / Tools ext.
E03 24647 26147 / 37493 69294 225430 69293 29279 / 83343
A303 A90-A91 A92
