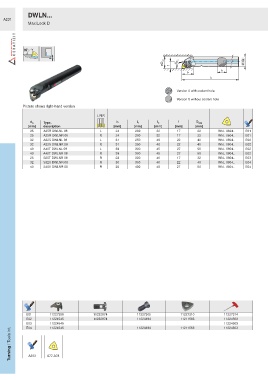

Page 252 - Ceratizit Catalog

DWLN...
A231
MaxiLock D

95°
ØD min 95° Ø d A
f
l 2 h
l 1

Version A with coolant hole

Version S without coolant hole
Picture shows right-hand version

L N R
d A Type, h l 1 l 2 f D min
[mm] description [mm] [mm] [mm] [mm] [mm]

25 A25R DWLNL 06 L 24 200 32 17 32 WN.. 0604.. E01

25 A25R DWLNR 06 R 24 200 32 17 32 WN.. 0604.. E01

32 A32S DWLNL 08 L 31 250 40 22 40 WN.. 0804.. E02
32 A32S DWLNR 08 R 31 250 40 22 40 WN.. 0804.. E02

40 A40T DWLNL 08 L 39 300 45 27 50 WN.. 0804.. E02

40 A40T DWLNR 08 R 39 300 45 27 50 WN.. 0804.. E02

25 S25T DWLNR 08 R 23 300 40 17 32 WN.. 0804.. E03

32 S32U DWLNR 08 R 30 350 40 22 40 WN.. 0804.. E04

40 S40V DWLNR 08 R 38 400 45 27 50 WN.. 0804.. E04

E01 11227306 11232874 11227305 11227310 11227314
E02 11224545 11232874 11224494 11211563 11224503
E03 11224545 11224494 11211563 11224503
Turning / Tools int. A303 A77-A78
11224503
11224545
E04
