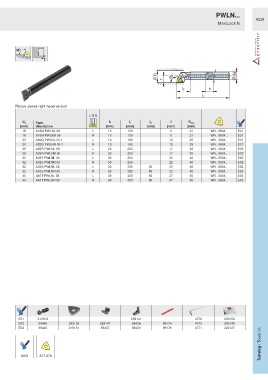

P. 257
PWLN...
A236
MaxiLock N
95°
Ø D 95° Ø d A
f
l 2 h
l 1
Picture shows right-hand version
L N R
d A Type, h l 1 l 2 f D min
[mm] description [mm] [mm] [mm] [mm] [mm]
16 A16M PWLNL 06 L 15 150 11 21 WN.. 0604.. E01
16 A16M PWLNR 06 R 15 150 11 21 WN.. 0604.. E01
20 A20Q PWLNL 06-1 L 19 180 13 25 WN.. 0604.. E01
20 A20Q PWLNR 06-1 R 19 180 13 25 WN.. 0604.. E01
25 A25R PWLNL 06 L 23 200 17 32 WN.. 0604.. E02
25 A25R PWLNR 06 R 23 200 17 32 WN.. 0604.. E02
32 A32S PWLNL 06 L 30 250 22 40 WN.. 0604.. E02
32 A32S PWLNR 06 R 30 250 22 40 WN.. 0604.. E02
32 A32S PWLNL 08 L 30 250 50 22 40 WN.. 0804.. E03
32 A32S PWLNR 08 R 30 250 50 22 40 WN.. 0804.. E03
40 A40T PWLNL 08 L 38 300 60 27 50 WN.. 0804.. E03
40 A40T PWLNR 08 R 38 300 60 27 50 WN.. 0804.. E03
E01 310913 293141 4773 293150
E02 59445 293139 293147 59429 86174 4770 293148
Turning / Tools int.
E03 59446 218151 59437 59430 86176 4771 222127
A303 A77-A78
