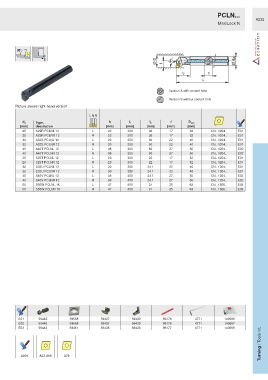

P. 253
PCLN...
A232
MaxiLock N
95°
Ø D 95° Ø d A
f
l 2 h
l 1
Version A with coolant hole
Version S without coolant hole
Picture shows right-hand version
L N R
d A Type, h l 1 l 2 f D min
[mm] description [mm] [mm] [mm] [mm] [mm]
25 A25R PCLNL 12 L 23 200 36 17 32 CN.. 1204.. E01
25 A25R PCLNR 12 R 23 200 36 17 32 CN.. 1204.. E01
32 A32S PCLNL 12 L 30 250 50 22 40 CN.. 1204.. E01
32 A32S PCLNR 12 R 30 250 50 22 40 CN.. 1204.. E01
40 A40T PCLNL 12 L 38 300 60 27 50 CN.. 1204.. E02
40 A40T PCLNR 12 R 38 300 60 27 50 CN.. 1204.. E02
25 S25T PCLNL 12 L 23 300 22 17 32 CN.. 1204.. E01
25 S25T PCLNR 12 R 23 300 22 17 32 CN.. 1204.. E01
32 S32U PCLNL 12 L 30 350 24.1 22 40 CN.. 1204.. E01
32 S32U PCLNR 12 R 30 350 24.1 22 40 CN.. 1204.. E01
40 S40V PCLNL 12 L 38 400 24.1 27 50 CN.. 1204.. E02
40 S40V PCLNR 12 R 38 400 24.1 27 50 CN.. 1204.. E02
50 S50W PCLNL 16 L 47 450 31 35 63 CN.. 1606.. E03
50 S50W PCLNR 16 R 47 450 31 35 63 CN.. 1606.. E03
E01 59442 59568 59437 59430 86176 4771 140586
E02 59446 59568 59437 59430 86176 4771 140587
E03 59443 59451 59438 59426 86177 4771 140589
Turning / Tools int.
A303 A63-A66 A79
