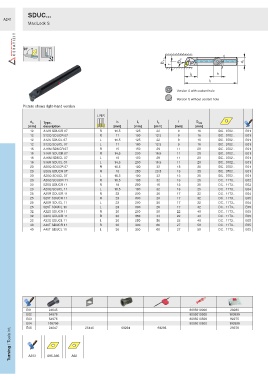

Page 262 - Ceratizit Catalog

SDUC...
A241
MaxiLock S

93°

D min 93° d A

f

l 2 h

l 1
Version A with coolant hole

Version S without coolant hole
Picture shows right-hand version

L N R
d A Type, h l 1 l 2 f D min
[mm] description [mm] [mm] [mm] [mm] [mm]

12 A12K SDUCR 07 R 11.5 125 22 9 16 DC.. 0702.. E01

12 S12Q SDUCR 07 R 11 180 12.5 9 16 DC.. 0702.. E01

12 A12K SDUCL 07 L 11.5 125 22 9 16 DC.. 0702.. E01
12 S12Q SDUCL 07 L 11 180 12.5 9 16 DC.. 0702.. E01

16 A16M SDUCR 07 R 15 150 29 11 20 DC.. 0702.. E01

16 S16R SDUCR 07 R 14.5 200 16.5 11 20 DC.. 0702.. E01

16 A16M SDUCL 07 L 15 150 29 11 20 DC.. 0702.. E01
16 S16R SDUCL 07 L 14.5 200 16.5 11 20 DC.. 0702.. E01

20 A20Q SDUCR 07 R 18.5 180 32 13 25 DC.. 0702.. E01

20 S20S SDUCR 07 R 18 250 20.5 13 25 DC.. 0702.. E01

20 A20Q SDUCL 07 L 18.5 180 32 13 25 DC.. 0702.. E01

20 A20Q SDUCR 11 R 18.5 180 32 13 25 DC.. 11T3.. E02

20 S20S SDUCR 11 R 18 250 16 13 25 DC.. 11T3.. E03
20 A20Q SDUCL 11 L 18.5 180 32 13 25 DC.. 11T3.. E04

25 A25R SDUCR 11 R 23 200 36 17 32 DC.. 11T3.. E04

25 S25T SDUCR 11 R 23 300 26 17 32 DC.. 11T3.. E05

25 A25R SDUCL 11 L 23 200 36 17 32 DC.. 11T3.. E04
25 S25T SDUCL 11 L 23 300 26 17 32 DC.. 11T3.. E05

32 A32S SDUCR 11 R 30 250 50 22 40 DC.. 11T3.. E05
32 S32U SDUCR 11 R 30 350 33 22 40 DC.. 11T3.. E05

32 A32S SDUCL 11 L 30 250 50 22 40 DC.. 11T3.. E05

40 A40T SDUCR 11 R 38 300 60 27 50 DC.. 11T3.. E05

40 A40T SDUCL 11 L 38 300 60 27 50 DC.. 11T3.. E05

E01 24645 8095010200 29280
E02 54976 8095010500 183936
E03 54976 8095010500 82275
E04 165795 26146 69294 69293 8095010500 183936
Turning / Tools int. A303 A85-A86 A92
29278
E05
24647
