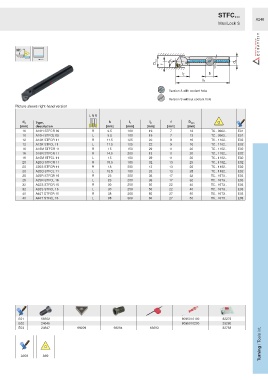

Page 267 - Ceratizit Catalog
P. 267
STFC...
A246
MaxiLock S
90°
D min 90° d A
f
l 2 h
l 1
Version A with coolant hole
Version S without coolant hole
Picture shows right-hand version
L N R
d A Type, h l 1 l 2 f D min
[mm] description [mm] [mm] [mm] [mm] [mm]
10 A10H STFCR 09 R 9.5 100 19 7 13 TC.. 0902.. E01
10 A10H STFCL 09 L 9.5 100 19 7 13 TC.. 0902.. E01
12 A12K STFCR 11 R 11.5 125 22 9 16 TC.. 1102.. E02
12 A12K STFCL 11 L 11.5 125 22 9 16 TC.. 1102.. E02
16 A16M STFCR 11 R 15 150 29 11 20 TC.. 1102.. E02
16 S16R STFCR 11 R 14.5 200 13 11 20 TC.. 1102.. E02
16 A16M STFCL 11 L 15 150 29 11 20 TC.. 1102.. E02
20 A20Q STFCR 11 R 18.5 180 32 13 25 TC.. 1102.. E02
20 S20S STFCR 11 R 18 250 13 13 25 TC.. 1102.. E02
20 A20Q STFCL 11 L 18.5 180 32 13 25 TC.. 1102.. E02
25 A25R STFCR 16 R 23 200 36 17 32 TC.. 16T3.. E03
25 A25R STFCL 16 L 23 200 36 17 32 TC.. 16T3.. E03
32 A32S STFCR 16 R 30 250 50 22 40 TC.. 16T3.. E03
32 A32S STFCL 16 L 30 250 50 22 40 TC.. 16T3.. E03
40 A40T STFCR 16 R 38 300 60 27 50 TC.. 16T3.. E03
40 A40T STFCL 16 L 38 300 60 27 50 TC.. 16T3.. E03
E01 56652 8095010100 82273
E02 24645 8095010200 29280
E03 24647 69209 69294 69293 82758
Turning / Tools int.
A303 A89
