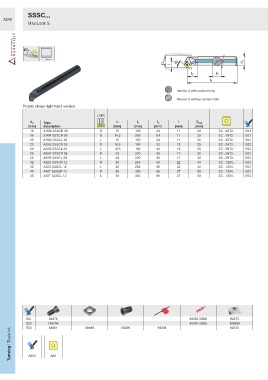

Page 266 - Ceratizit Catalog
P. 266
SSSC...
A245
MaxiLock S
45°
D min 45° d A
f
l 2 h
l 1
Version A with coolant hole
Version S without coolant hole
Picture shows right-hand version
L N R
d A Type, h l 1 l 2 f D min
[mm] description [mm] [mm] [mm] [mm] [mm]
16 A16M SSSCR 09 R 15 150 29 11 20 SC.. 09T3.. E01
16 S16R SSSCR 09 R 14.5 200 8.4 11 20 SC.. 09T3.. E01
16 A16M SSSCL 09 L 15 150 29 11 20 SC.. 09T3.. E01
20 A20Q SSSCR 09 R 18.5 180 32 13 25 SC.. 09T3.. E02
20 A20Q SSSCL 09 L 18.5 180 32 13 25 SC.. 09T3.. E02
25 A25R SSSCR 09 R 23 200 36 17 32 SC.. 09T3.. E02
25 A25R SSSCL 09 L 23 200 36 17 32 SC.. 09T3.. E02
32 A32S SSSCR 12 R 30 250 50 22 40 SC.. 1204.. E03
32 A32S SSSCL 12 L 30 250 50 22 40 SC.. 1204.. E03
40 A40T SSSCR 12 R 38 300 60 27 50 SC.. 1204.. E03
40 A40T SSSCL 12 L 38 300 60 27 50 SC.. 1204.. E03
E01 54976 8095010500 82275
E02 165795 69199 69296 69293 8095010500 183936
Turning / Tools int. A303 A88
82270
E03
54981
