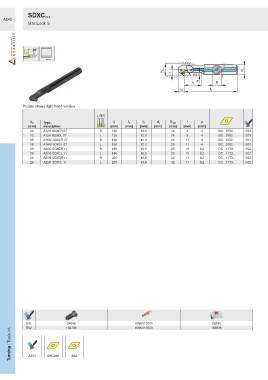

Page 264 - Ceratizit Catalog
P. 264
SDXC...
A243
MaxiLock S
93°
D min d A
f
93°
a
l 2 h
l 3 l 1
Picture shows right-hand version
L N R
d A Type, l 1 l 2 l 3 d 2 D min f a
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm]
12 A12K SDXCR 07 R 125 12.0 16 9 4 DC.. 0702.. E01
12 A12K SDXCL 07 L 125 12.0 16 9 4 DC.. 0702.. E01
16 A16M SDXCR 07 R 150 12.0 20 11 4 DC.. 0702.. E01
16 A16M SDXCL 07 L 150 12.0 20 11 4 DC.. 0702.. E01
20 A20Q SDXCR 11 R 180 16.5 25 13 6.2 DC.. 11T3.. E02
20 A20Q SDXCL 11 L 180 16.5 25 13 6.2 DC.. 11T3.. E02
25 A25R SDXCR 11 R 200 16.8 32 17 9.2 DC.. 11T3.. E02
25 A25R SDXCL 11 L 200 16.8 32 17 9.2 DC.. 11T3.. E02
E01 165795 8095010200 183936
29280
24645
8095010500
Turning / Tools int. A303 A85-A86 A92
E02
