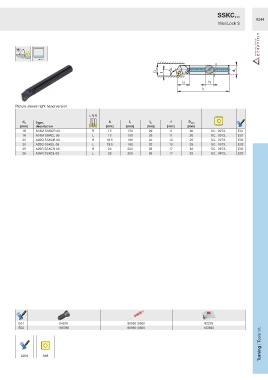

P. 265
SSKC...
A244
MaxiLock S
75°
D min 75° d A
f
l 2 h
l 1
Picture shows right-hand version
L N R
d A Type, h l 1 l 2 f D min
[mm] description [mm] [mm] [mm] [mm] [mm]
16 A16M SSKCR 09 R 15 150 29 11 20 SC.. 09T3.. E01
16 A16M SSKCL 09 L 15 150 29 11 20 SC.. 09T3.. E01
20 A20Q SSKCR 09 R 18.5 180 32 13 25 SC.. 09T3.. E02
20 A20Q SSKCL 09 L 18.5 180 32 13 25 SC.. 09T3.. E02
25 A25R SSKCR 09 R 23 200 36 17 32 SC.. 09T3.. E02
25 A25R SSKCL 09 L 23 200 36 17 32 SC.. 09T3.. E02
E01 54976 8095010500 82275
Turning / Tools int.
E02 165795 8095010500 183936
A303 A88
