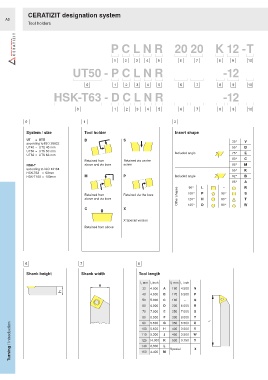

Page 26 - Ceratizit Catalog

CERATIZIT designation system
A5
Tool holders

PCLN R 20 20 K 12 -T

1 2 3 4 5 6 7 8 9 10

UT50-PCLN R -12

0 1 2 3 4 5 6 7 8 9 10

HSK-T63- DCLN R -12

0 1 2 3 4 5 6 7 8 9 10

0 1 2

System / size Tool holder Insert shape
UT = UTS D S 35° V
according to ISO 26622
UT40 = UTS 40 mm 55° D
UT50 = UTS 50 mm
Included angle 75° E
UT63 = UTS 63 mm
80° C
Retained from Retained via centre
HSK-T above and via bore screw 86° M
according to ISO 12164
55° K
HSK-T63 = 63mm
HSK-T100 = 100mm M P Included angle 82° B
85° A
R
90°
–
L
Other shapes
Retained from Retained via the bore 108° P 90° S
above and via bore 120° H 60° T
C X 135° O 80° W
X Special version
Retained from above

6 7 8

Shank height Shank width Tool length
l 1 mm l 1 inch l 1 mm l 1 inch
B
32 4.000 A 160 4.500 N
h
40 4.500 B 170 5.500 P
50 5.000 C 180 – Q
60 6.000 D 200 6.000 R
70 7.000 E 250 7.000 S
80 8.000 F 300 8.000 T
l 1
Turning / Introduction 110 5.300 M Special 3.500 W
5.500
350
U
5.500
90
G
3.500
V
100
H
5.625
400
450
J
125 14.000
500
3.750
K
Y
L
6.800
140
X
4.400
150
