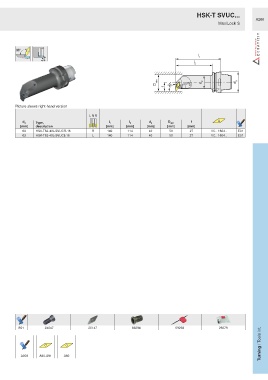

P. 281
HSK-T SVUC...
A260
MaxiLock S
93°
l
1
l
2
D min 93° d 2 d A
f
Picture shows right-hand version
L N R
d A Type, l 1 l 2 d 2 D min f
[mm] description [mm] [mm] [mm] [mm] [mm]
63 HSK-T63-40L-SVUCR-16 R 140 114 40 50 27 VC.. 1604.. E01
63 HSK-T63-40L-SVUCL-16 L 140 114 40 50 27 VC.. 1604.. E01
Turning / Tools int.
E01 24647 26147 69294 69293 29279
A303 A90-A91 A92
