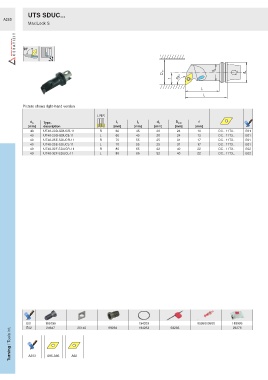

Page 286 - Ceratizit Catalog
P. 286
UTS SDUC...
A265
MaxiLock S
93°
D min d 2 d A
f 93°
l 2
l 1
Picture shows right-hand version
L N R
d A Type, l 1 l 2 d 2 D min f
[mm] description [mm] [mm] [mm] [mm] [mm]
40 UT40-20D-SDUCR-11 R 60 45 20 24 13 DC.. 11T3.. E01
40 UT40-20D-SDUCL-11 L 60 45 20 24 13 DC.. 11T3.. E01
40 UT40-25E-SDUCR-11 R 70 55 25 31 17 DC.. 11T3.. E01
40 UT40-25E-SDUCL-11 L 70 55 25 31 17 DC.. 11T3.. E01
40 UT40-32F-SDUCR-11 R 80 65 32 40 22 DC.. 11T3.. E02
40 UT40-32F-SDUCL-11 L 80 65 32 40 22 DC.. 11T3.. E02
E01 165795 26146 69294 194263 69293 8095010500 183936
29278
E02
