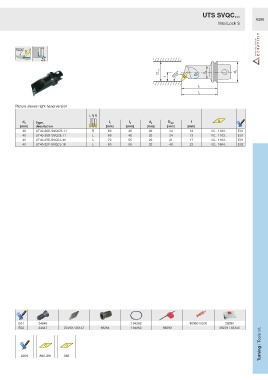

P. 289
UTS SVQC...
A268
MaxiLock S
D min d 2 d A
f 107,5°
l 2
l 1
Picture shows right-hand version
L N R
d A Type, l 1 l 2 d 2 D min f
[mm] description [mm] [mm] [mm] [mm] [mm]
40 UT40-20D-SVQCR-11 R 60 45 20 24 13 VC.. 1103.. E01
40 UT40-20D-SVQCL-11 L 60 45 20 24 13 VC.. 1103.. E01
40 UT40-25E-SVQCL-11 L 70 55 25 31 17 VC.. 1103.. E01
40 UT40-32F-SVQCL-16 L 80 65 32 40 22 VC.. 1604.. E02
E01 24645 194263 8095010200 29280
Turning / Tools int.
E02 24647 37493 / 26147 69294 194263 69293 29279 / 83343
A303 A90-A91 A92
