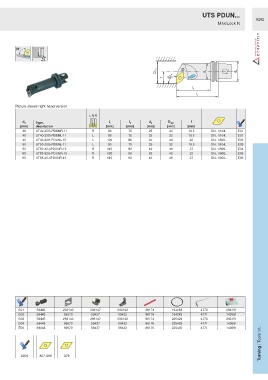

Page 283 - Ceratizit Catalog

UTS PDUN...
A262
MaxiLock N

93°

D min d 2 d A
93°
f

l 2

l 1

Picture shows right-hand version

L N R
d A Type, l 1 l 2 d 2 D min f
[mm] description [mm] [mm] [mm] [mm] [mm]
40 UT40-25G-PDUNR-11 R 90 75 25 32 18.5 DN.. 1104.. E01

40 UT40-25G-PDUNL-11 L 90 75 25 32 18.5 DN.. 1104.. E01

40 UT40-32H-PDUNL-15 L 100 86 32 40 22 DN.. 1506.. E02

50 UT50-25G-PDUNL-11 L 90 70 25 32 18.5 DN.. 1104.. E03
50 UT50-40J-PDUNR-15 R 110 82 40 49 27 DN.. 1506.. E04

63 UT63-32H-PDUNR-15 R 100 66 32 40 22 DN.. 1506.. E05

63 UT63-40J-PDUNR-15 R 110 82 40 49 27 DN.. 1506.. E05

E01 59445 293140 293147 293143 86174 194263 4770 293151
E02 59443 59570 59437 59432 86176 194263 4771 140591
E03 59445 293140 293147 293143 86174 225429 4770 293151
E04 59443 59570 59437 59432 86176 225429 4771 140591
Turning / Tools int.
E05 59443 59570 59437 59432 86176 225430 4771 140591

A303 A67-A69 A79
