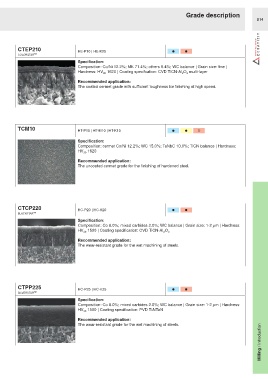

P. 341

Grade description
                                                                                                                   B14






         CTEP210                    HE-P10 | HE-K05                             ●    ●
         COLORSTAR TM
                                    Specification:
                                    Composition: Co/Ni 12.2%; MK 71.4%; others 0.4%; WC balance | Grain size: fine |
                                    Hardness: HV  1620 | Coating specifcation: CVD TiCN-Al O  multi-layer
                                                                                    3
                                                                                  2
                                               30

                                    Recommended application:
                                    The coated cermet grade with sufficient toughness for finishing at high speed.







         TCM10
                                    HT-P15 | HT-M10 | HT-K10                    ●    ●     ○

                                    Specification:
                                    Composition: cermet Co/Ni 12.2%; WC 15.0%; TaNbC 10.0%; TiCN balance | Hardness:
                                    HV  1620
                                      30

                                    Recommended application:
                                    The uncoated cermet grade for the finishing of hardened steel.









         CTCP220                    HC-P20 | HC-K20                             ●    ●
         BLACKSTAR TM
                                    Specification:
                                    Composition: Co 8.0%; mixed carbides 2.0%; WC balance | Grain size: 1-2 µm | Hardness:
                                    HV  1500 | Coating specification: CVD TiCN-AI O
                                      30                                  2  3

                                    Recommended application:
                                    The wear-resistant grade for the wet machining of steels.









         CTPP225                    HC-P25 | HC-K25                             ●    ●
                TM
         SILVERSTAR
                                    Specification:
                                    Composition: Co 8.0%; mixed carbides 2.0%; WC balance | Grain size: 1-2 µm | Hardness:
                                    HV  1500 | Coating specification: PVD TiAlTaN
                                      30

                                    Recommended application:
                                    The wear-resistant grade for the wet machining of steels.
                                                                                                                     Milling / Introduction
