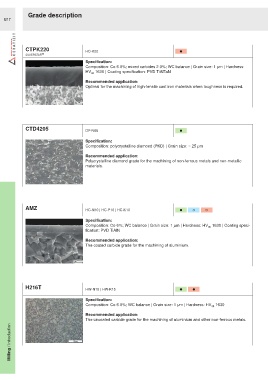

Grade description
B17

CTPK220 HC-K20 ●
SILVERSTAR TM
Specification:
Composition: Co 6.0%; mixed carbides 2.0%; WC balance | Grain size: 1 µm | Hardness:
HV 1630 | Coating specification: PVD TiAlTaN
30

Recommended application:
Optimal for the machining of high-tensile cast iron materials when toughness is required.

CTD4205
DP-N05 ●

Specification:
Composition: polycrystalline diamond (PKD) | Grain size: ~ 25 µm

Recommended application:
Polycrystalline diamond grade for the machining of non-ferrous metals and non-metallic
materials.

AMZ HC-N10 | HC-P10 | HC-K10 ● ○ ○

Specification:
Composition: Co 6%; WC balance | Grain size: 1 µm | Hardness: HV 1630 | Coating speci-
30
fication: PVD TiAlN

Recommended application:
The coated carbide grade for the machining of aluminium.

H216T HW-N15 | HW-K15 ● ●

Specification:
Composition: Co 6.0%; WC balance | Grain size: 1 µm | Hardness: HV 1630
30

Recommended application:
The uncoated carbide grade for the machining of aluminium and other non-ferrous metals.
