P. 407

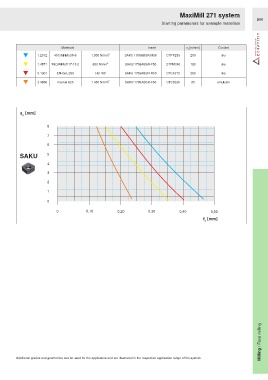

MaxiMill 271 system
B80
Starting parameters for example materials
Materials Insert v c [m/min] Coolant
1.2312 40CrMnMoS8-6 1.000 N/mm 2 SAKU 1706ABSR-M50 CTPP235 200 dry
1.4571 X6CrNiMoTi17-12-2 600 N/mm 2 SAKU 1706ABSR-F50 CTPM240 180 dry
5.1301 EN-GJL-250 HB 180 SAKU 1706ABSR-R50 CTCK215 250 dry
2
2.4856 Inconel 625 1.450 N/mm SAKU 1706ABSR-F50 CTC5235 35 emulsion
a ［mm］
p
8
7
6
SAKU 5
4
3
2
1
0
0 0,10 0,20 0,30 0,40 0,50
f ［mm］
z
Milling / Face milling
Additional grades and geometries can be used for the application and are illustrated in the respective application range of the system.
