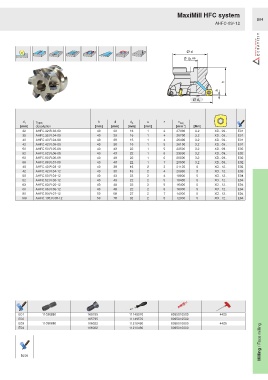

Page 411 - Ceratizit Catalog

MaxiMill HFC system
B84
AHFC-09/-12

Ø d
Ø d A H6

h
a

Ø d
1

d 1 Type, h d d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [min ] [Nm]

32 AHFC.32.R.03-09 40 38 16 1 3 27000 3.2 XD.. 09.. E01

35 AHFC.35.R.04-09 40 38 16 1 4 26700 3.2 XD.. 09.. E01

40 AHFC.40.R.04-09 40 38 16 1 4 26400 3.2 XD.. 09.. E01
42 AHFC.42.R.05-09 40 38 16 1 5 26100 3.2 XD.. 09.. E01

50 AHFC.50.R.05-09 40 43 22 1 5 23500 3.2 XD.. 09.. E02

52 AHFC.52.R.06-09 40 43 22 1 6 23000 3.2 XD.. 09.. E02

63 AHFC.63.R.06-09 40 48 22 1 6 20500 3.2 XD.. 09.. E02

66 AHFC.66.R.07-09 40 48 22 1 7 20000 3.2 XD.. 09.. E02

40 AHFC.40.R.03-12 40 38 16 2 3 21120 5 XO.. 12.. E03

42 AHFC.42.R.04-12 40 38 16 2 4 20880 5 XO.. 12.. E03

50 AHFC.50.R.04-12 40 43 22 2 4 18800 5 XO.. 12.. E04

52 AHFC.52.R.05-12 40 43 22 2 5 18400 5 XO.. 12.. E04

63 AHFC.63.R.05-12 40 48 22 2 5 16400 5 XO.. 12.. E04

66 AHFC.66.R.06-12 40 48 22 2 6 16000 5 XO.. 12.. E04

80 AHFC.80.R.07-12 50 58 27 2 7 14000 5 XO.. 12.. E04

100 AHFC.100.R.08-12 50 78 32 2 8 12000 5 XO.. 12.. E04

E01 11036880 165795 11149570 8095010500 4425
E02 165795 11149570 8095010500
E03 11036880 106022 11210490 8095010600 4425
Milling / Face milling
E04 106022 11210490 8095010600
