Page 470 - Ceratizit Catalog
P. 470

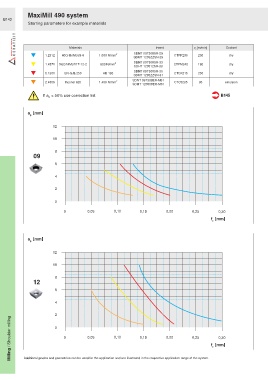

MaxiMill 490 system
B143
Starting parameters for example materials
Materials Insert v c [m/min] Coolant
SDNT 09T308SR-29
1.2312 40CrMnMoS8-6 1.000 N/mm 2 CTPP235 200 dry
SDMT 1205ZZSN-29
SDNT 09T308SR-33
1.4571 X6CrNiMoTi17-12-2 600 N/mm 2 CTPM240 160 dry
SDHT 120512SR-33
SDNT 09T308SR-31
5.1301 EN-GJL-250 HB 180 CTCK215 250 dry
SDMT 1205ZZSN-31
SDNT 09T308ER-M31
2
2.4856 Inconel 625 1.450 N/mm CTC5235 35 emulsion
SDMT 120508ER-M31
If a < 50% use correction list B145
e
a ［mm］
p
12
10
8
09
6
4
2
0
0 0,05 0,10 0,15 0,20 0,25 0,30
f ［mm］
z
a ［mm］
p
12
10
8
12
6
4
2
Milling / Shoulder milling Additional grades and geometries can be used for the application and are illustrated in the respective application range of the system. f ［mm］
0
0,10
0
0,05
0,30
0,15
0,20
0,25
z
