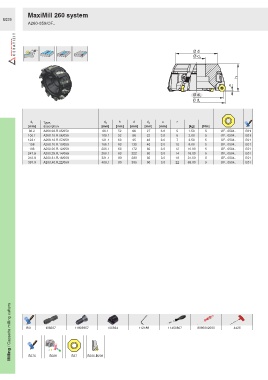

Page 536 - Ceratizit Catalog

MaxiMill 260 system
B209
A260-059/OF..

d 1 Type, d 2 h d d A a z
[mm] description [mm] [mm] [mm] [mm] [mm] [kg] [Nm]

80.2 A260.08.R.05/059 88.1 52 66 27 3.0 5 1.50 5 OF.. 0504.. E01

100.1 A260.10.R.06/059 108.1 52 86 32 3.0 6 2.00 5 OF.. 0504.. E01

123.1 A260.12.R.07/059 131.1 63 95 40 3.0 7 3.50 5 OF.. 0504.. E01
158 A260.16.R.10/059 166.1 63 130 40 3.0 10 6.00 5 OF.. 0504.. E01

198 A260.20.R.12/059 206.1 63 172 60 3.0 12 10.00 5 OF.. 0504.. E01
247.9 A260.25.R.14/059 256.1 63 222 60 3.0 14 18.00 5 OF.. 0504.. E01

312.9 A260.31.R.18/059 321.1 80 280 60 3.0 18 31.50 5 OF.. 0504.. E01

397.9 A260.40.R.22/059 406.1 80 365 60 3.0 22 68.00 5 OF.. 0504.. E01

Milling / Cassette milling cutters E01 106607 B37 B206-B208 106934 112188 11450867 8095012000 4425

11803957

B276
B226
