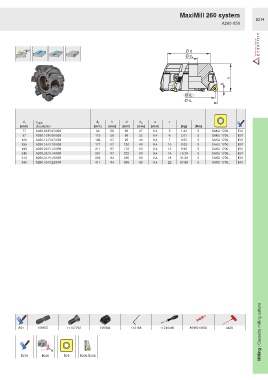

Page 541 - Ceratizit Catalog

MaxiMill 260 system
B214
A260-058

d 1 Type, d 2 h d d A a z
[mm] description [mm] [mm] [mm] [mm] [mm] [kg] [Nm]

77 A260.08.R.05/058 93 56 66 27 8.4 5 1.39 5 SAKU 1706.. E01

97 A260.10.R.06/058 113 56 86 32 8.4 6 2.01 5 SAKU 1706.. E01

120 A260.12.R.07/058 136 67 95 40 8.4 7 3.55 5 SAKU 1706.. E01

155 A260.16.R.10/058 171 67 130 40 8.4 10 6.09 5 SAKU 1706.. E01
195 A260.20.R.12/058 211 67 172 60 8.4 12 9.96 5 SAKU 1706.. E01

245 A260.25.R.14/058 261 67 222 60 8.4 14 16.79 5 SAKU 1706.. E01

310 A260.31.R.18/058 326 84 280 60 8.4 18 31.53 5 SAKU 1706.. E01

395 A260.40.R.22/058 411 84 365 60 8.4 22 67.98 5 SAKU 1706.. E01

Milling / Cassette milling cutters

E01 106607 11107792 106934 112188 11210490 8095010600 4425

B276 B226 B79 B206-B208
