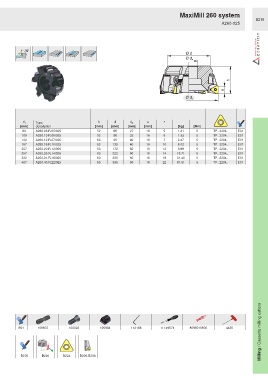

Page 545 - Ceratizit Catalog

MaxiMill 260 system
B218
A260-025

d 1 Type, h d d A a z
[mm] description [mm] [mm] [mm] [mm] [kg] [Nm]

89 A260.08.R.05/025 52 66 27 18 5 1.31 5 TP.. 2204.. E01

109 A260.10.R.06/025 52 86 32 18 6 1.93 5 TP.. 2204.. E01

132 A260.12.R.07/025 63 95 40 18 7 3.47 5 TP.. 2204.. E01

167 A260.16.R.10/025 63 130 40 18 10 6.02 5 TP.. 2204.. E01
207 A260.20.R.12/025 63 172 60 18 12 9.88 5 TP.. 2204.. E01

257 A260.25.R.14/025 63 222 60 18 14 16.71 5 TP.. 2204.. E01

322 A260.31.R.18/025 80 280 60 18 18 31.46 5 TP.. 2204.. E01

407 A260.40.R.22/025 80 365 60 18 22 67.51 5 TP.. 2204.. E01

Milling / Cassette milling cutters

E01 106607 106022 106934 112188 11149571 8095010600 4425

B276 B226 B224 B206-B208
