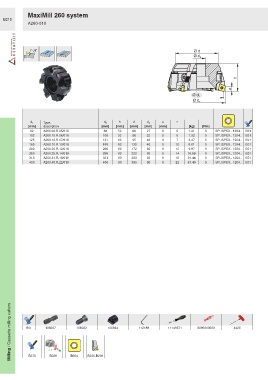

Page 542 - Ceratizit Catalog

MaxiMill 260 system
B215
A260-018

d 1 Type, d 2 h d d A a z
[mm] description [mm] [mm] [mm] [mm] [mm] [kg] [Nm]

82 A260.08.R.05/018 88 52 66 27 9 5 1.31 5 SP../SPEX.. 1204.. E01

102 A260.10.R.06/018 108 52 86 32 9 6 1.92 5 SP../SPEX.. 1204.. E01

125 A260.12.R.07/018 131 63 95 40 9 7 3.47 5 SP../SPEX.. 1204.. E01
160 A260.16.R.10/018 166 63 130 40 9 10 6.01 5 SP../SPEX.. 1204.. E01

200 A260.20.R.12/018 206 63 172 60 9 12 9.87 5 SP../SPEX.. 1204.. E01

250 A260.25.R.14/018 256 63 222 60 9 14 16.69 5 SP../SPEX.. 1204.. E01

315 A260.31.R.18/018 321 80 280 60 9 18 31.44 5 SP../SPEX.. 1204.. E01

400 A260.40.R.22/018 406 80 365 60 9 22 67.49 5 SP../SPEX.. 1204.. E01

Milling / Cassette milling cutters E01 106607 B224 106022 B206-B208 106934 112188 11149571 8095010600 4425

B276
B226
