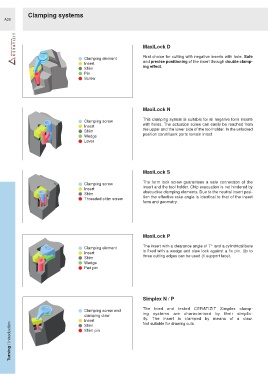

MaxiLock D

First choice for cutting with negative inserts with hole. Safe
Clamping element
and precise positioning of the insert through double clamp-
Insert
ing effect.
Shim
Pin
Screw

MaxiLock N

This clamping system is suitable for all negative form inserts
Clamping screw
Insert with holes. The actuation screw can easily be reached from
Shim the upper and the lower side of the tool holder. In the unlocked
Wedge position constituent parts remain intact.
Lever

MaxiLock S

The form lock screw guarantees a safe connection of the
Clamping screw
insert and the tool holder. Chip evacuation is not hindered by
Insert
obstructive clamping elements. Due to the neutral insert posi-
Shim
tion the effective rake angle is identical to that of the insert
Threaded shim screw
form and geometry.

MaxiLock P

The insert with a clearance angle of 7° and a cylindrical bore
Clamping element
is fixed with a wedge and claw lock against a fix pin. Up to
Insert
three cutting edges can be used (1 support face).
Shim
Wedge
Pad pin

Simplex N / P

The tried and tested CERATIZIT Simplex clamp-
Clamping screw and
ing systems are characterised by their simplic-
clamping claw
ity. The insert is clamped by means of a claw.
Insert Not suitable for drawing cuts.
