Page 610 - Ceratizit Catalog
P. 610

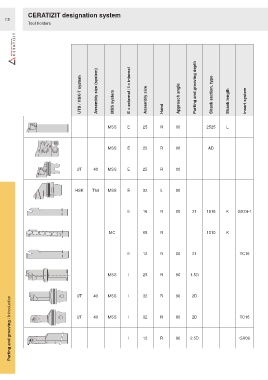

CERATIZIT designation system
C5
Tool holders
UTS / HSK-T system Assembly size (system) MSS system E = external / I = internal Assembly size Hand Approach angle Parting and grooving depth Shank section, type Shank length Insert system
MSS E 25 R 00 2525 L
MSS E 25 R 00 AD
UT 40 MSS E 25 R 00
HSK T63 MSS E 32 L 90
E 16 R 00 21 1616 K GX24-1
MC 05 R 1010 K
E 12 R 00 21 TC16
MSS I I 25 R 90 1.5D
R
2D
32
90
40
UT
MSS
Parting and grooving / Introduction UT 40 MSS I I 32 R 90 2.5D GX09
TC16
2D
12
R
90
