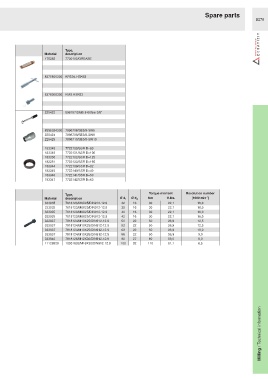

P. 605
Spare parts
B278
Type,
Material description
170382 7730102/GREASE
8375806300 KRS04.HSK63
8376006300 KMS.HSK63
225422 896707/DMS 8-60Nm 3/8"
8395024300 7896708/SE3/8-SW5
225424 7896709/SE3/8-SW6
225425 7896710/SE3/8-SW10
183348 7722130/SSR D=80
183349 7722131/SSR D=100
183350 7722132/SSR D=125
183351 7722133/SSR D=160
183344 7722139/SSR D=32
183345 7722140/SSR D=40
183346 7722141/SSR D=50
183347 7722142/SSR D=63
Torque moment Revolution number
Type,
-1
Material description Ø d 1 Ø d A Nm ft.lbs. [1000 min ]
333935 7818123/M8X25/DIN912-12.9 32 16 30 22,1 16,0
333935 7818123/M8X25/DIN912-12.9 35 16 30 22,1 16,0
333935 7818123/M8X25/DIN912-12.9 40 16 30 22,1 16,0
333935 7818123/M8X25/DIN912-12.9 42 16 30 22,1 16,0
333937 7818124/M10X25/DIN912-12.9 50 22 50 36,9 12,5
333937 7818124/M10X25/DIN912-12.9 52 22 50 36,9 12,5
333937 7818124/M10X25/DIN912-12.9 63 22 50 36,9 10,0
333937 7818124/M10X25/DIN912-12.9 66 22 50 36,9 9,0
333940 7818125/M12X30/DIN912-12.9 80 27 80 59,0 8,0
11128929 10001632/M16X30/DIN912-12.9 100 32 110 81,1 6,5
Milling / Technical information
