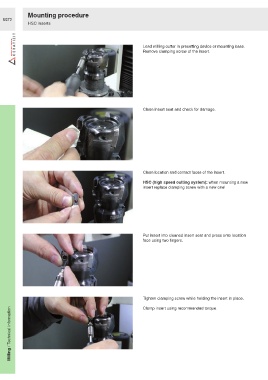

Mounting procedure
B273
HSC inserts
Load milling cutter in presetting device or mounting base.
Remove clamping screw of the insert.
Clean insert seat and check for damage.
Clean location and contact faces of the insert.
HSC (high speed cutting system): when mounting a new
insert replace clamping screw with a new one!
Put insert into cleaned insert seat and press onto location
face using two fingers.
Tighten clamping screw while holding the insert in place.
Clamp insert using recommended torque.
