P. 602

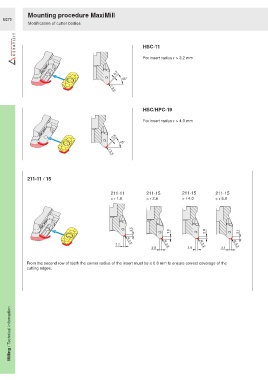

Mounting procedure MaxiMill
B275
Modification of cutter bodies
HSC-11
For insert radius r > 3.2 mm
0.7
45°
r 3.0
HSC/HPC-19
For insert radius r > 4.0 mm
0.6
45°
r 3.3
211-11 / 15
211-11 211-15 211-15 211-15
> r 1.6 > r 2.5 > r 4.0 > r 5.0
2.5 1.9 2.8 3.1
2.2 R 2.5 R 2.0 R 3.2 R 3.2
2.0 2.6 3.1
From the second row of teeth the corner radius of the insert must be ≤ 0.8 mm to ensure correct coverage of the
cutting edges.
Milling / Technical information
