Mounting procedure
B274

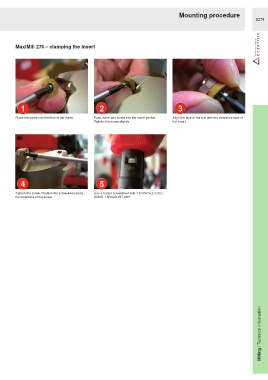

MaxiMill 274 – clamping the insert
Place the screw into the hole of the insert. Push insert and screw into the insert pocket. Align the face of the tool with the clearance face of
Tighten the screw slightly. the insert.
Tighten the screw. Position the screwdriver along Use a torque screwdriver with 1.6 Nm/14.2 in.lbs.:
the centreline of the screw. DMSD 1,6Nm/SORT 08IP
