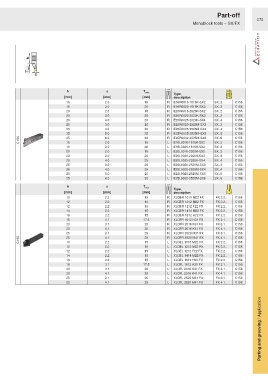

Page 677 - Ceratizit Catalog

Part-off
C72
Monoblock tools – SX/FX

L R
h s T max
Type,
[mm] [mm] [mm] description
16 2.0 16 R E16R0016-1616K-SX2 SX..2 C156
16 3.0 20 R E16R0020-1616K-SX3 SX..3 C156
20 2.0 16 R E20R0016-2020K-SX2 SX..2 C156
20 3.0 20 R E20R0020-2020K-SX3 SX..3 C156
20 4.0 25 R E20R0025-2020K-SX4 SX..4 C156
25 3.0 20 R E25R0020-2525M-SX3 SX..3 C156
25 4.0 25 R E25R0025-2525M-SX4 SX..4 C156
25 5.0 25 R E25R0025-2525M-SX5 SX..5 C156
C194 25 6.0 32 R E25R0032-2525M-SX6 SX..6 C156
E16L0016-1616K-SX2
C156
L
16
16
SX..2
2.0
16 3.0 20 L E16L0020-1616K-SX3 SX..3 C156
20 2.0 16 L E20L0016-2020K-SX2 SX..2 C156
20 3.0 20 L E20L0020-2020K-SX3 SX..3 C156
20 4.0 25 L E20L0025-2020K-SX4 SX..4 C156
25 3.0 20 L E25L0020-2525M-SX3 SX..3 C156
25 4.0 25 L E25L0025-2525M-SX4 SX..4 C156
25 5.0 25 L E25L0025-2525M-SX5 SX..5 C156
25 6.0 32 L E25L0032-2525M-SX6 SX..6 C156
L R
h s T max
Type,
[mm] [mm] [mm] description
10 2.2 15 R XLCER 1010 M22 FX FX 2.2.. C158
12 2.2 15 R XLCER 1212 M22 FX FX 2.2.. C158
12 2.2 15 R XLCER 1212 F22 FX FX 2.2.. C158
14 2.2 15 R XLCER 1414 M22 FX FX 2.2.. C158
16 2.2 15 R XLCER 1612 H22 FX FX 2.2.. C158
16 3.1 17.5 R XLCFR 1612 H31 FX FX 3.1.. C158
20 3.1 20 R XLCFR 2016 K31 FX FX 3.1.. C158
20 4.1 20 R XLCFR 2016 K41 FX FX 4.1.. C158
25 3.1 25 R XLCFR 2520 M31 FX FX 3.1.. C158
C195 25 4.1 25 R XLCFR 2520 M41 FX FX 4.1.. C158
XLCEL 1010 M22 FX
FX 2.2..
C158
L
10
2.2
15
12 2.2 15 L XLCEL 1212 M22 FX FX 2.2.. C158
12 2.2 15 L XLCEL 1212 F22 FX FX 2.2.. C158
14 2.2 15 L XLCEL 1414 M22 FX FX 2.2.. C158
16 2.2 15 L XLCEL 1612 H22 FX FX 2.2.. C158
16 3.1 17.5 L XLCFL 1612 H31 FX FX 3.1.. C158
20 3.1 20 L XLCFL 2016 K31 FX FX 3.1.. C158
20 4.1 20 L XLCFL 2016 K41 FX FX 4.1.. C158
25 3.1 25 L XLCFL 2520 M31 FX FX 3.1.. C158
25 4.1 25 L XLCFL 2520 M41 FX FX 4.1.. C158
Parting and grooving / Application
