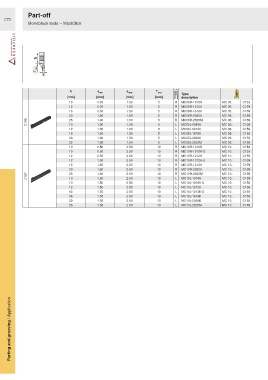

Page 678 - Ceratizit Catalog

Part-off
C73
Monoblock tools – MaxiClick

L R
h s min s max T max
Type,
[mm] [mm] [mm] [mm] description
10 1.00 1.50 5 R MC05R-1010K MC 05.. C159
12 1.00 1.50 5 R MC05R-1212K MC 05.. C159
16 1.00 1.50 5 R MC05R-1616K MC 05.. C159
20 1.00 1.50 5 R MC05R-2020K MC 05.. C159
C196 25 1.00 1.50 5 5 R MC05R-2525M MC 05.. C159
1.00
C159
MC 05..
MC05L-1010K
L
10
1.50
12 1.00 1.50 5 L MC05L-1212K MC 05.. C159
16 1.00 1.50 5 L MC05L-1616K MC 05.. C159
20 1.00 1.50 5 L MC05L-2020K MC 05.. C159
25 1.00 1.50 5 L MC05L-2525M MC 05.. C159
10 1.50 2.50 10 R MC10R-1010K MC 10.. C159
10 1.50 2.50 10 R MC10R-1010K-S MC 10.. C159
12 1.50 2.50 10 R MC10R-1212K MC 10.. C159
12 1.50 2.50 10 R MC10R-1212K-S MC 10.. C159
16 1.50 2.50 10 R MC10R-1616K MC 10.. C159
20 1.50 2.50 10 R MC10R-2020K MC 10.. C159
C197 25 1.50 2.50 10 R MC10R-2525M MC 10.. C159
C159
MC 10..
MC10L-1010K
L
10
10
1.50
2.50
10 1.50 2.50 10 L MC10L-1010K-S MC 10.. C159
12 1.50 2.50 10 L MC10L-1212K MC 10.. C159
12 1.50 2.50 10 L MC10L-1212K-S MC 10.. C159
16 1.50 2.50 10 L MC10L-1616K MC 10.. C159
20 1.50 2.50 10 L MC10L-2020K MC 10.. C159
25 1.50 2.50 10 L MC10L-2525M MC 10.. C159

Parting and grooving / Application
