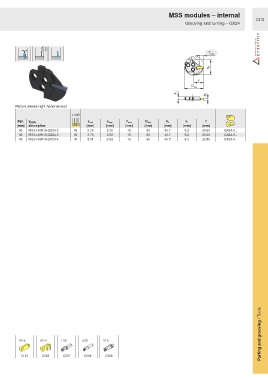

MSS modules – internal
C212
Grooving and turning – GX24

T max

h 2

f
D min
s 1
s

Picture shows right-hand version

L N R

Bgr. Type, s min s max T max D min h 2 s 1 f
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm]

40 MSS-I40N19-GX24-2 N 2.76 3.75 19 60 40.7 6.2 33.50 GX24-2..
40 MSS-I40N19-GX24-3 N 3.76 5.00 19 60 40.7 6.2 33.50 GX24-3..

40 MSS-I40N19-GX24-4 N 5.01 6.50 19 60 40.7 6.2 33.50 GX24-4..

Parting and grooving / Tools

GX-E GX-S 1.5D 2.5D UTS

C151 C153 C207 C208 C209
