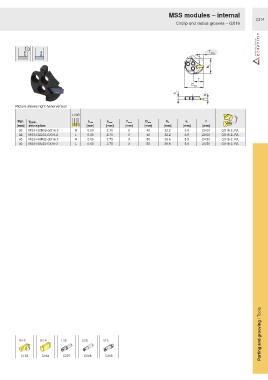

Page 819 - Ceratizit Catalog

MSS modules – internal
C214
Circlip and radius grooves – GX16

T max

h 2

f
D min
s 1
s

Picture shows right-hand version

L N R

Bgr. Type, s min s max T max D min h 2 s 1 f
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] [mm]

32 MSS-I32R03-GX16-2 R 0.60 2.75 3 40 32.2 5.9 20.00 GX16-2..R/L

32 MSS-I32L03-GX16-2 L 0.60 2.75 3 40 32.2 5.9 20.00 GX16-2..R/L
40 MSS-I40R03-GX16-2 R 0.60 2.75 3 50 39.6 5.9 24.50 GX16-2..R/L

40 MSS-I40L03-GX16-2 L 0.60 2.75 3 50 39.6 5.9 24.50 GX16-2..R/L
