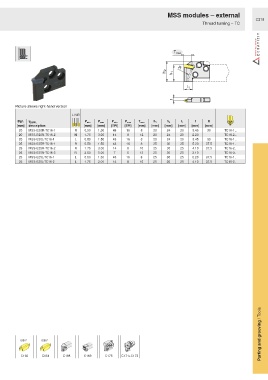

Page 823 - Ceratizit Catalog
P. 823
MSS modules – external
C218
Thread turning – TC
T max
R
h 2 h 1
l 1
f
Picture shows right-hand version
L N R
Bgr. Type, P min P max P min P max T max h 1 h 2 l 1 f R
[mm] description [mm] [mm] [TPI] [TPI] [mm] [mm] [mm] [mm] [mm] [mm]
20 MSS-E20R-TC16-1 R 0.50 1.50 48 16 8 20 24 20 3.45 30 TC16-1..
20 MSS-E20N-TC16-2 N 1.75 3.00 14 8 12 20 24 20 2.20 TC16-2..
20 MSS-E20L-TC16-1 L 0.50 1.50 48 16 8 20 24 20 3.45 30 TC16-1..
25 MSS-E25R-TC16-1 R 0.50 1.50 48 16 8 25 30 25 5.20 37.5 TC16-1..
25 MSS-E25R-TC16-2 R 1.75 3.00 14 8 10 25 30 25 4.10 37.5 TC16-2..
25 MSS-E25N-TC16-3 N 3.50 5.00 7 5 12 25 30 25 3.10 TC16-3..
25 MSS-E25L-TC16-1 L 0.50 1.50 48 16 8 25 30 25 5.20 37.5 TC16-1..
25 MSS-E25L-TC16-2 L 1.75 3.00 14 8 10 25 30 25 4.10 37.5 TC16-2..
Parting and grooving / Tools
TC60° TC55°
C160 C161 C168 C169 C175 C171+C173
