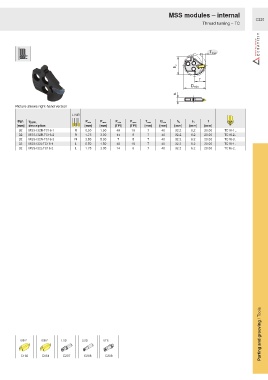

Page 825 - Ceratizit Catalog

MSS modules – internal
C220
Thread turning – TC

T max

h 2

f
D min
s 1

Picture shows right-hand version

L N R

Bgr. Type, P min P max P min P max T max D min h 2 s 1 f
[mm] description [mm] [mm] [TPI] [TPI] [mm] [mm] [mm] [mm] [mm]

32 MSS-I32R-TC16-1 R 0.50 1.50 48 16 7 40 32.2 6.2 20.00 TC16-1..

32 MSS-I32R-TC16-2 R 1.75 3.00 14 8 7 40 32.2 6.2 20.00 TC16-2..

32 MSS-I32N-TC16-3 N 3.50 5.00 7 5 7 40 32.2 6.2 20.00 TC16-3..

32 MSS-I32L-TC16-1 L 0.50 1.50 48 16 7 40 32.2 6.2 20.00 TC16-1..
32 MSS-I32L-TC16-2 L 1.75 3.00 14 8 7 40 32.2 6.2 20.00 TC16-2..
